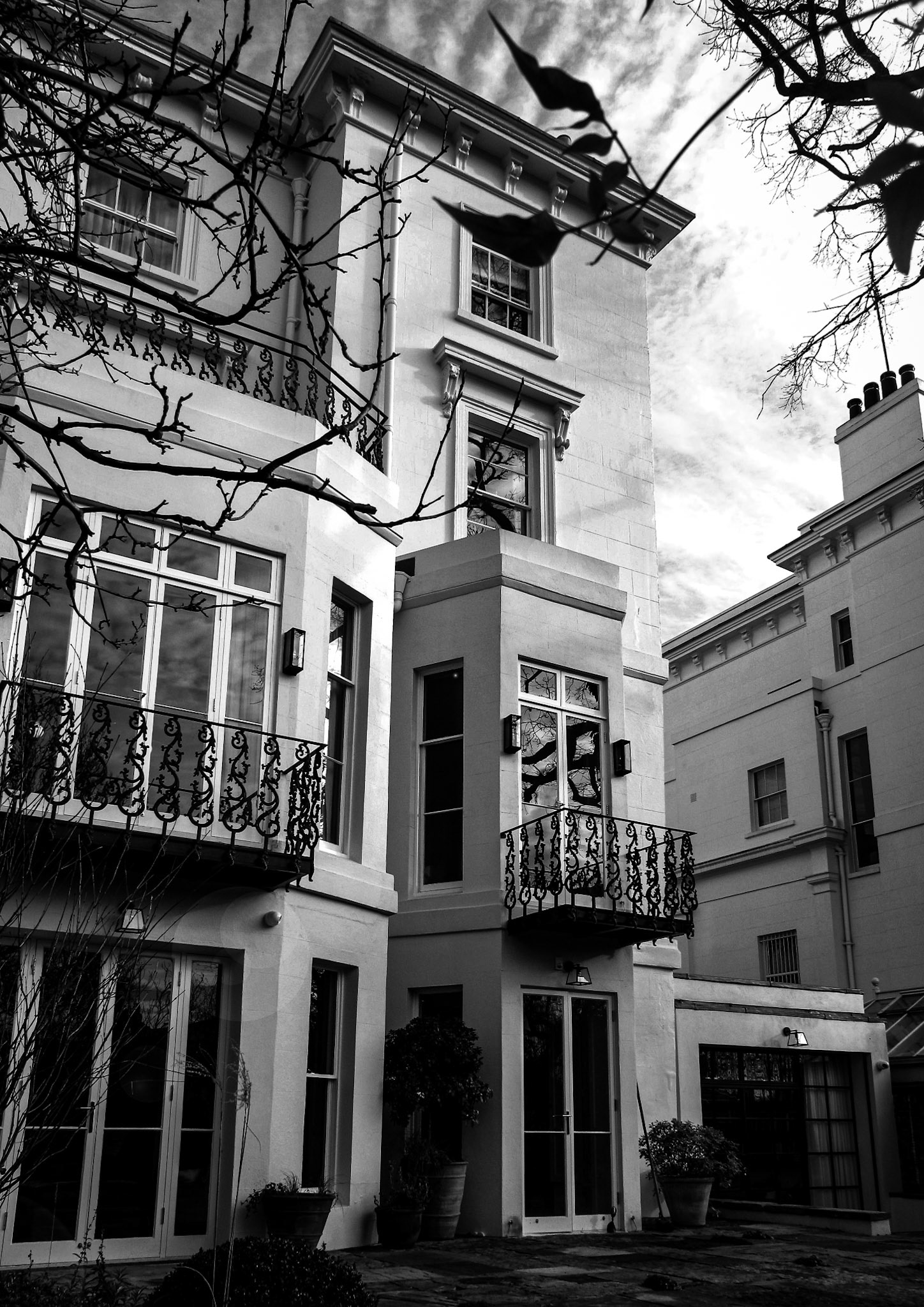

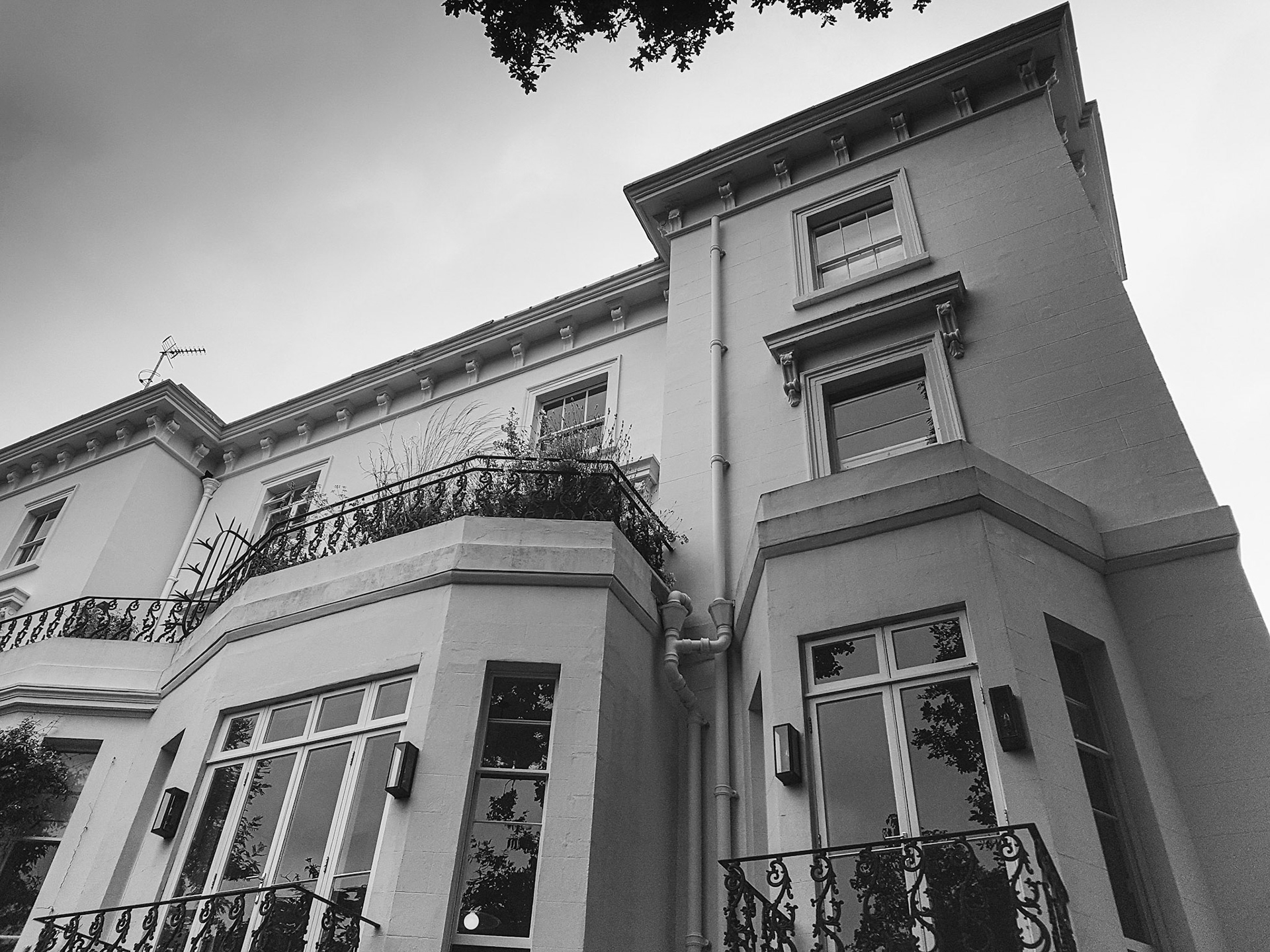

Full interanl and external refurbishment of Grade 2 listed town house including subterranean cinema extension and above ground extensions.

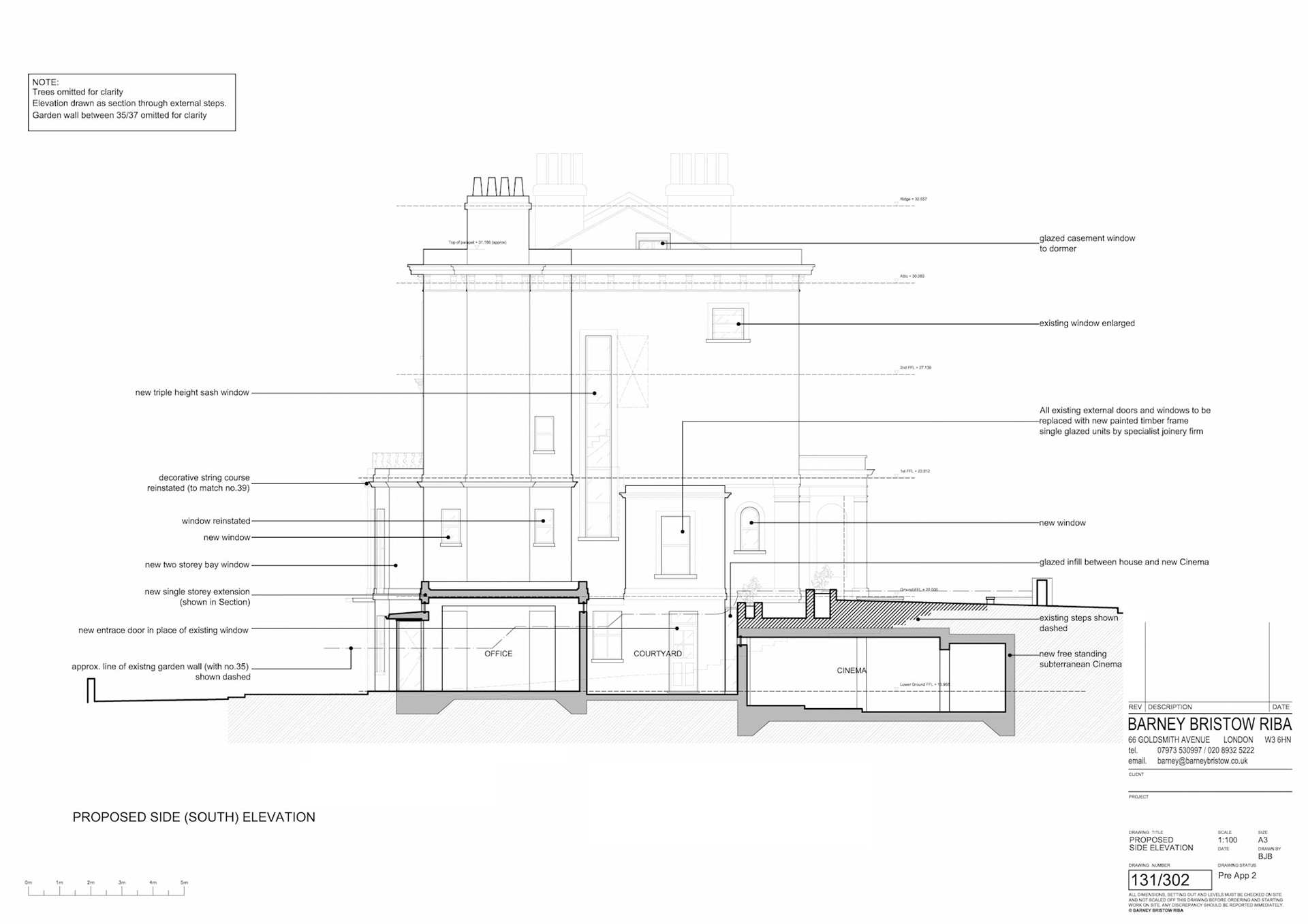

Proposed Elevation/Section A3 1:100 AutoCAD

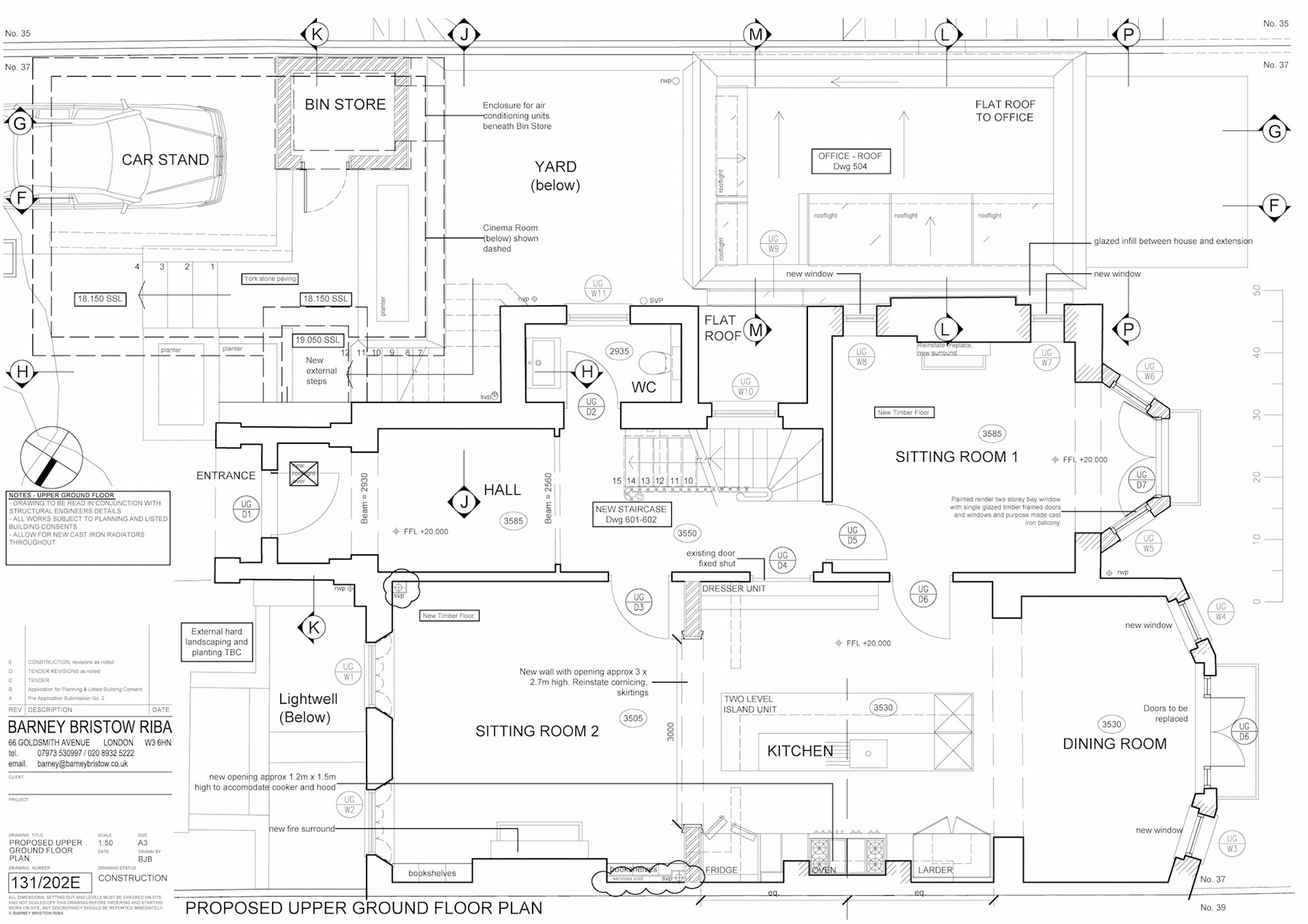

Poporsed GA Plan A3 1:50 AutoCAD

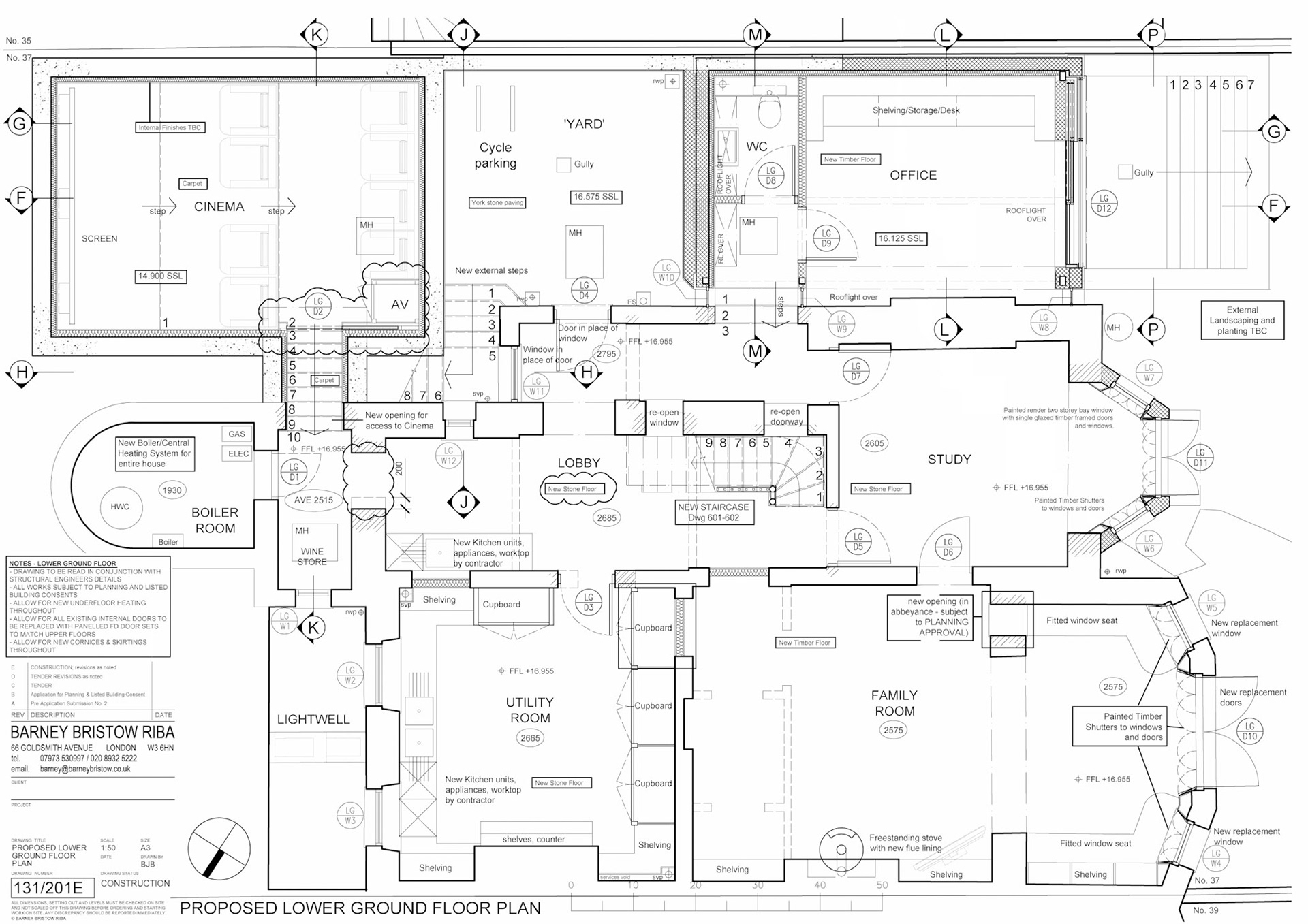

Poporsed GA Plan A3 1:50 AutoCAD

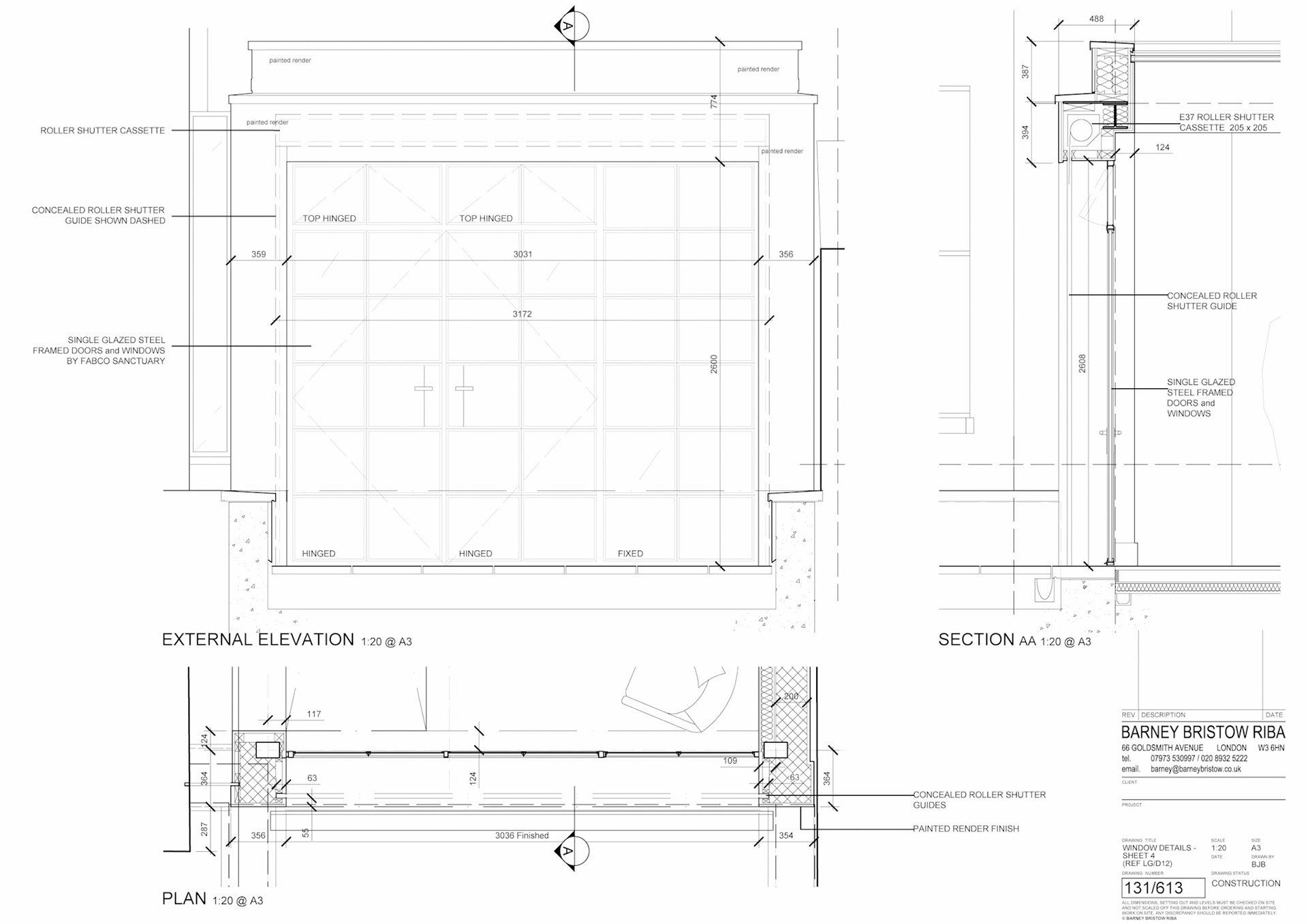

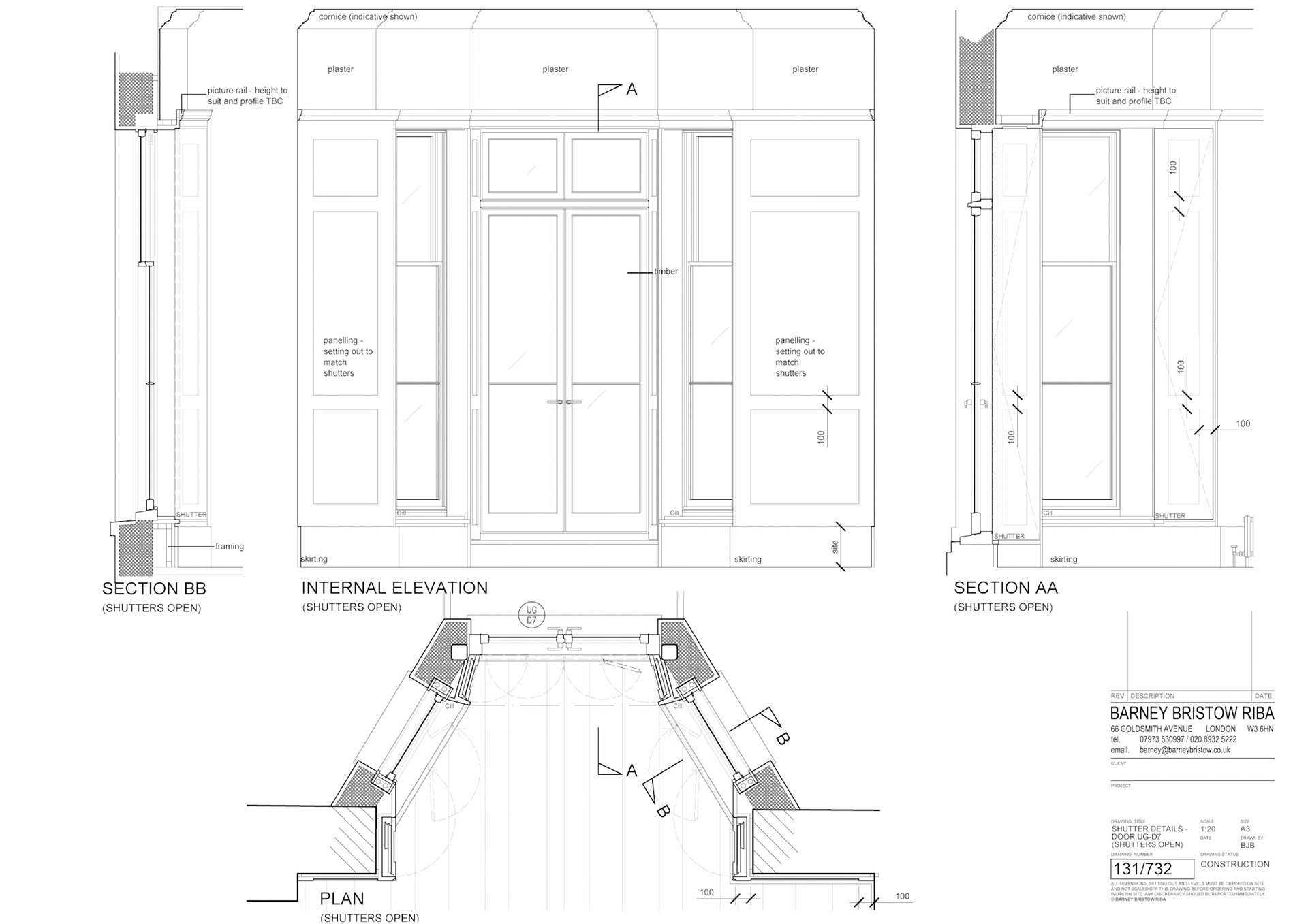

Window & Door Shutters A3 1:20 AutoCAD

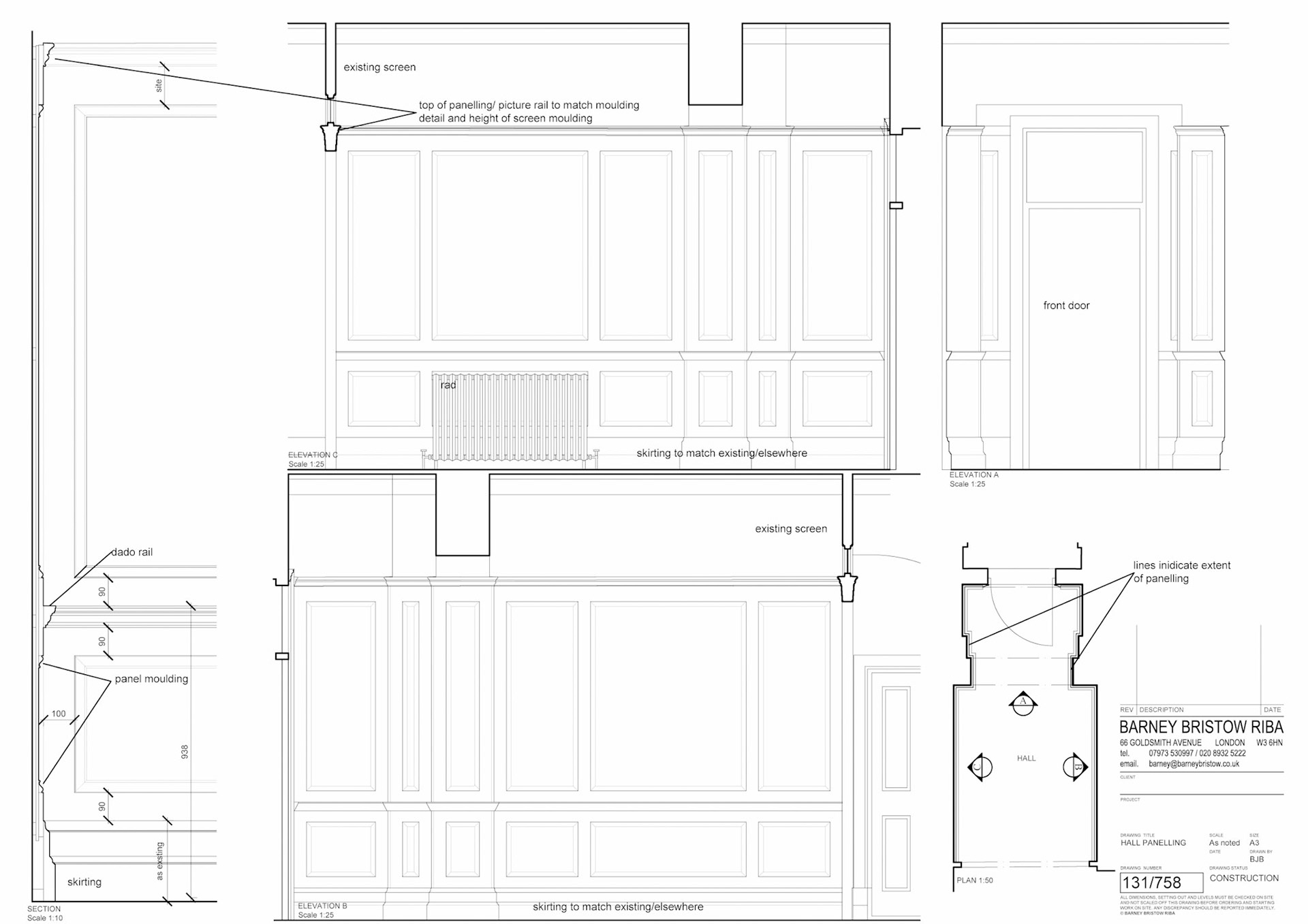

Panelling A3 1:20 AutoCAD

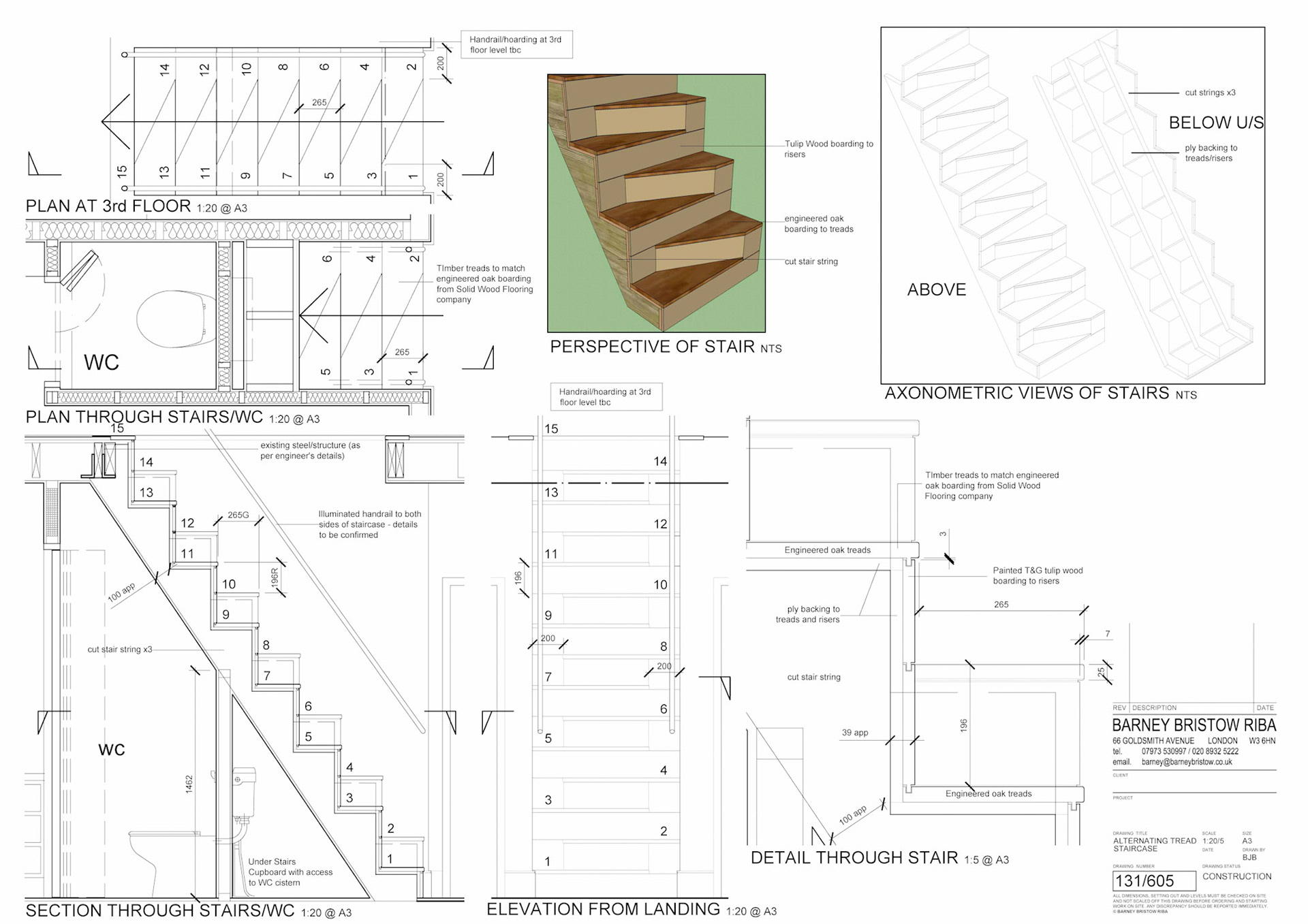

Staircase A3 1:20/5 SketchUp/Layout

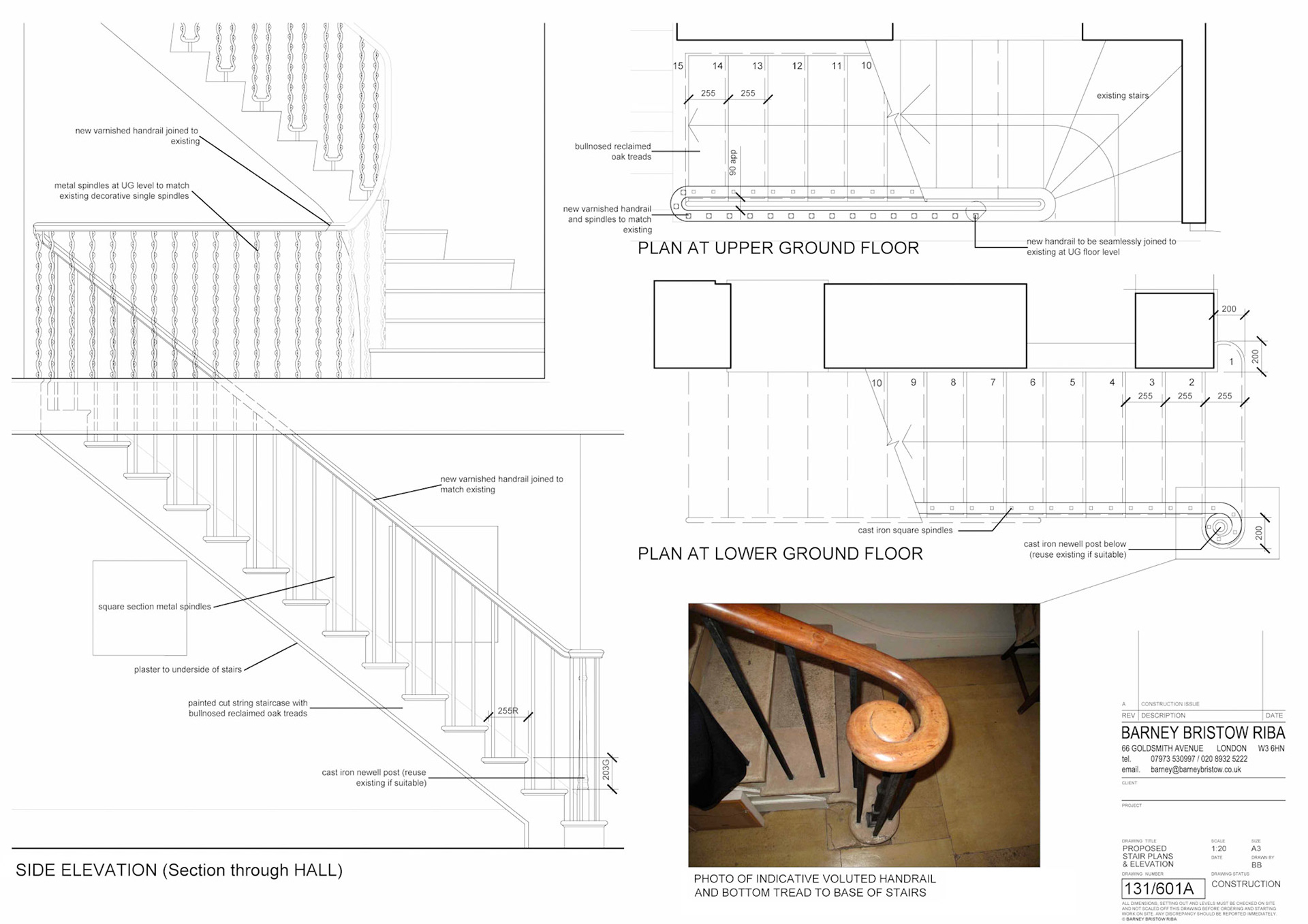

Staircase A3 1:20 AutoCAD
Proposed Section A3 1:50 AutoCAD
Artist Impression NTS SketchUp/Photoshop

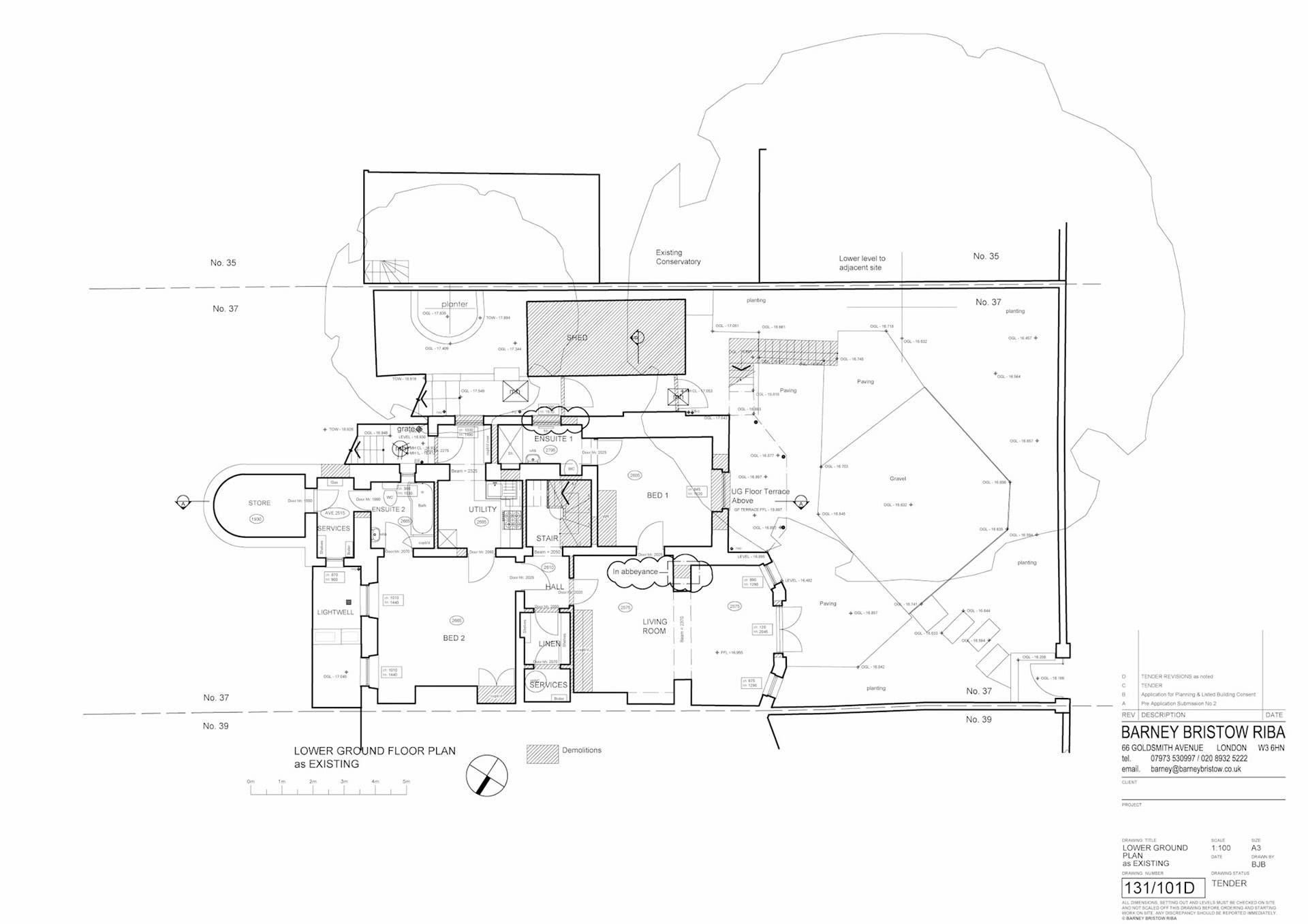

Exisiting/Demolition Plan A3 1:100 AutoCAD
